STEEL REELS

Delivering Strength and Durability

We diversified into the manufacture of steel reels in 1987. Our steel reels provide strength and durability for heavy duty wire and cable applications.

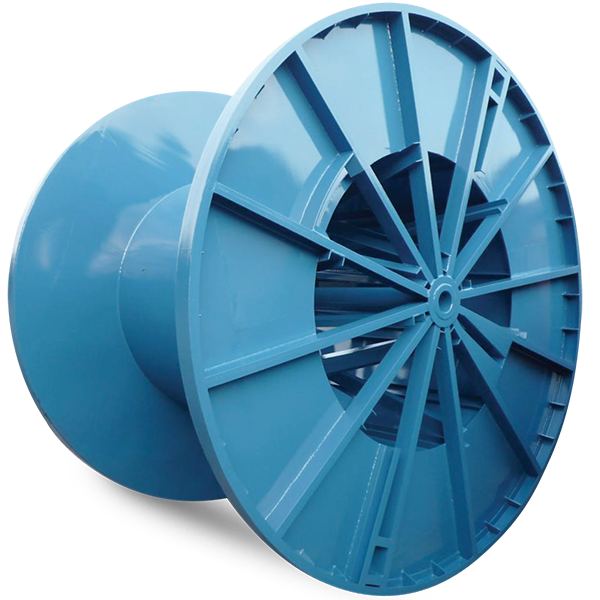

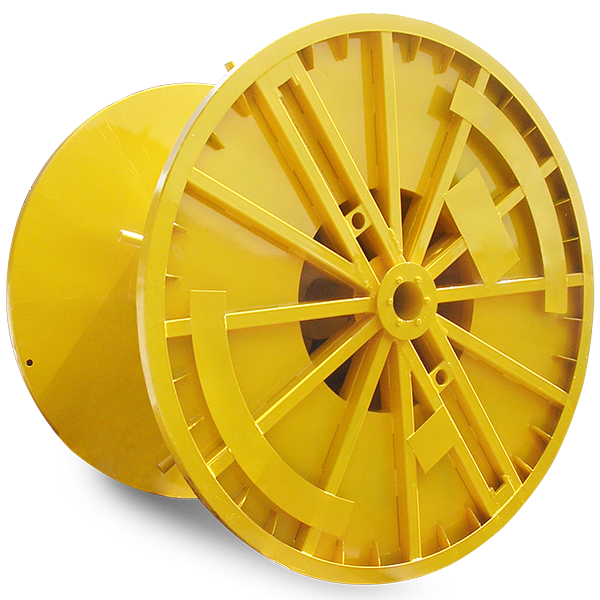

Flat Process Steel Reels

Flat Process Steel Reels


Material : Mild Steel
Size : Flange Ø 2,000mm to 4,000mm
Loading Weight : Up to 200 tonne
Ideal for : In-house process, to support the heavy weight load of wire ropes
Flat Process Steel Reels

Flat Process Steel Reels


Material : Mild Steel
Size : Flange Ø 2,000mm to 4,000mm
Loading Weight : Up to 50 tonne
Ideal for : In-house process, drillline process, to support the heavy weight load of wire ropes
Flat Process Steel Reel

Flat Process Steel Reels


Material : Mild Steel
Size : Flange Ø 1,000mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : In-house process for cable and wire rope packing

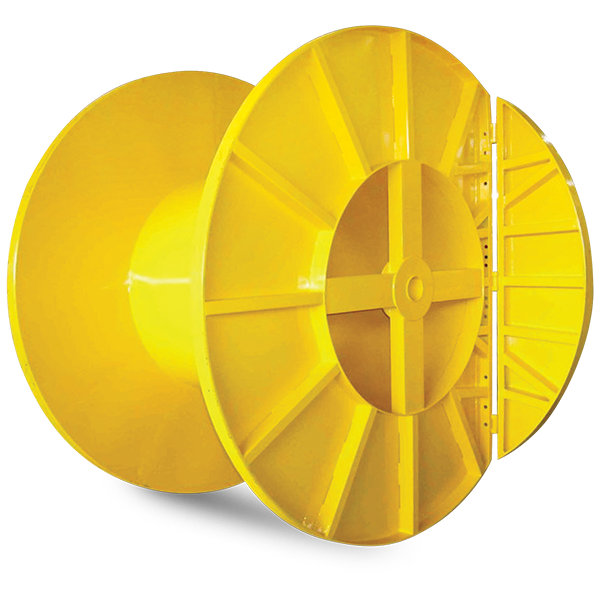

Flat Packing Steel Reels

Flat Packing Steel Reels
(Flange Folded Type)

Material : Mild Steel
Size : Flange Ø 2,300mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : Cable and wire rope packing. The folded flange design allows the height of the reel to be reduced for easier storage, transportation and container stuffing

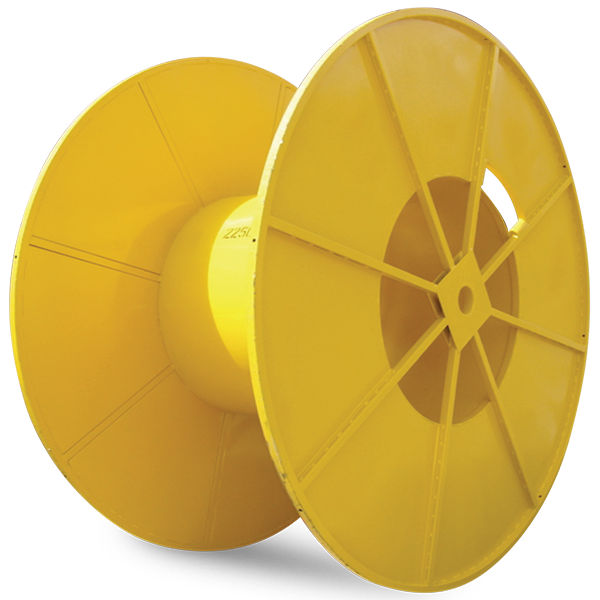

Flat Economy Steel Reels

Flat Economy Steel Reels


Material : Mild Steel
Size : Flange Ø 1,000mm to 2,200mm
Loading Weight : Up to 8 tonne
Ideal for : Cable and wire rope packing. The simplified design allows for more economical pricing

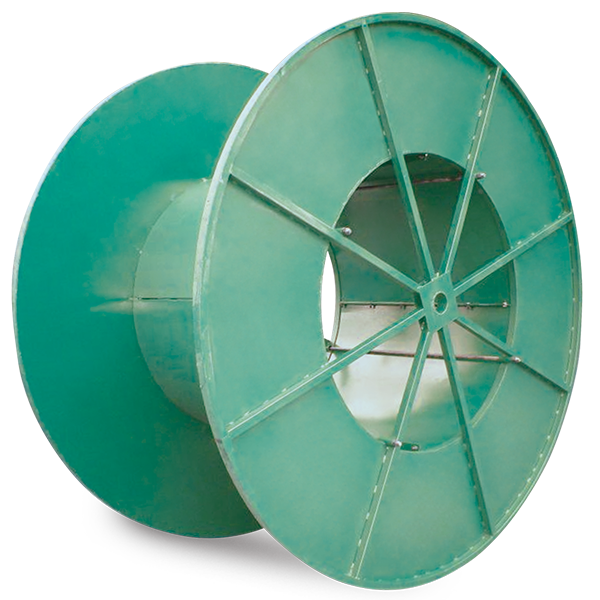

Flat Economy Steel Reels

Flat Economy Steel Reels
(Knock Down Bolted Type)

Material : Mild Steel
Size : Flange Ø 1,000mm to 2,200mm
Loading Weight : Up to 8 tonne
Ideal for : Cable and wire rope packing. The simplified design allows for more economical pricing

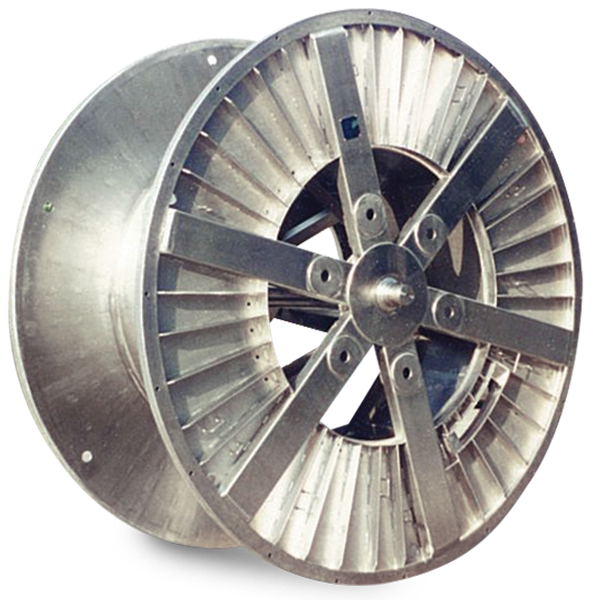

Flat Process Stainless Steel Reels

Flat Process Stainless Steel Reels


Material : Stainless Steel SUS304
Size : Flange Ø 1,000mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : In-house process

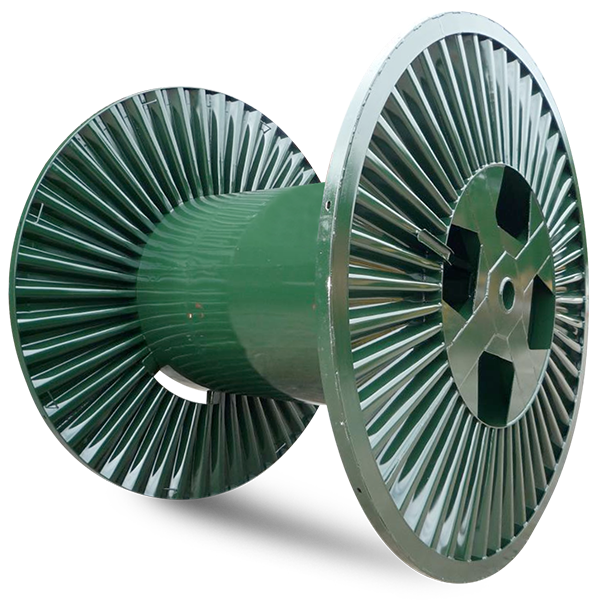

Corrugated Process Steel Reels

Corrugated Process Steel Reels


Material : Mild Steel
Size : Flange Ø 800mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : In-house process for cable and wire rope packing

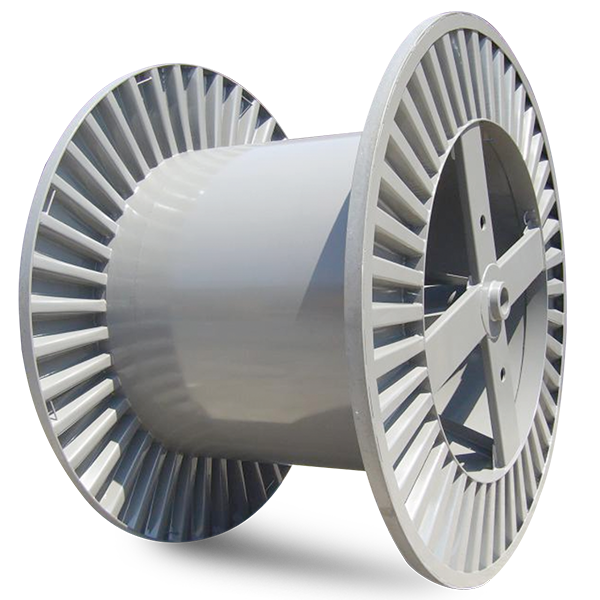

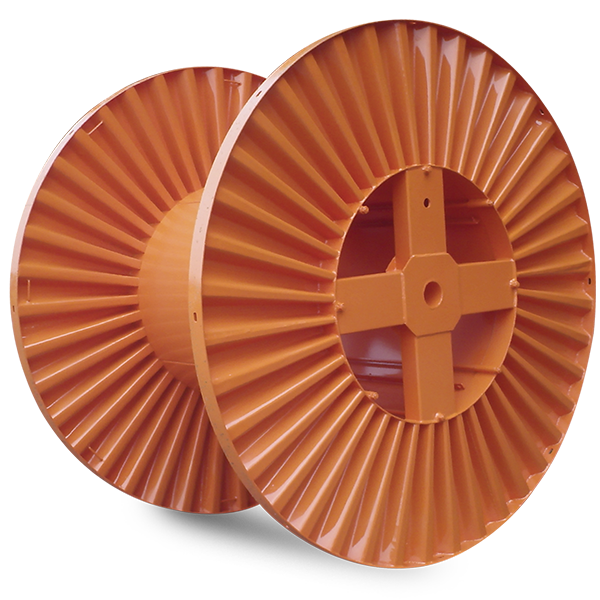

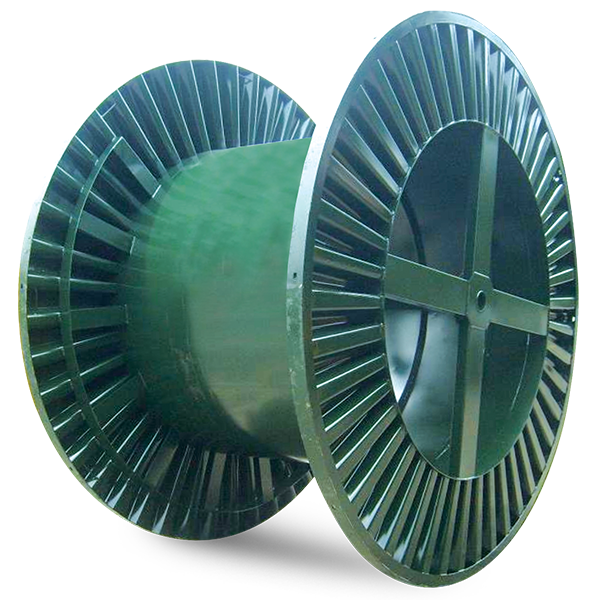

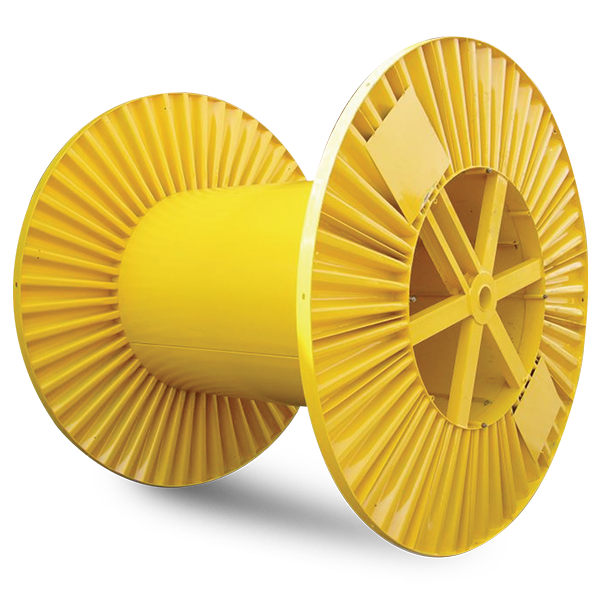

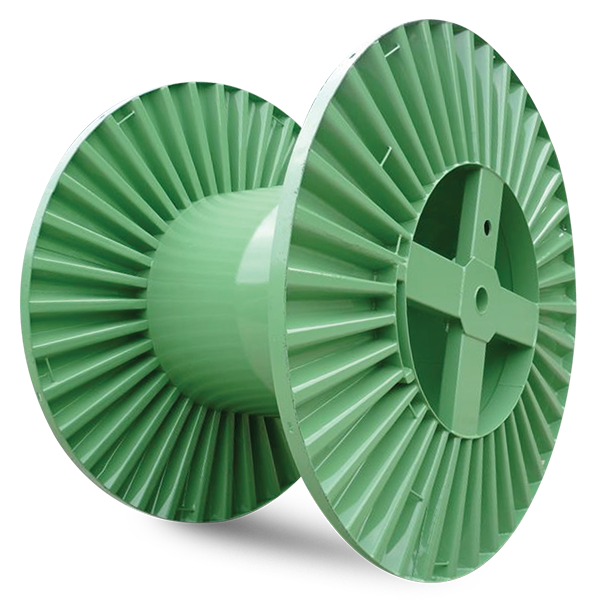

Corrugated Packing Steel Reels

Corrugated Packing Steel Reels


Material : Mild Steel
Size : Flange Ø 800mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : Cable and wire rope packing

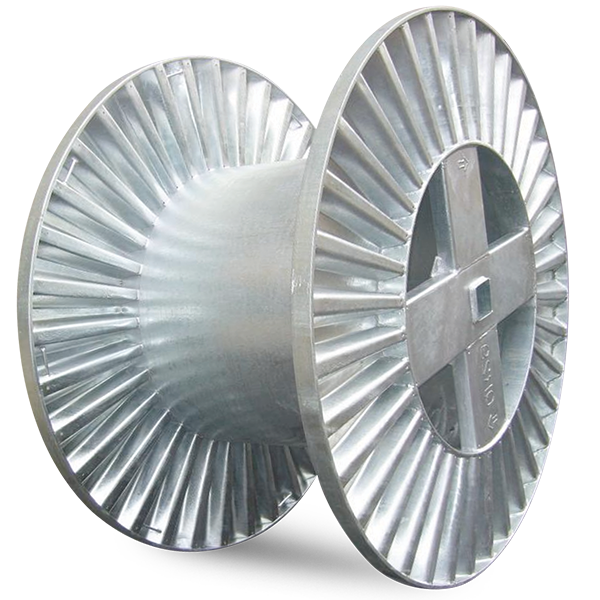

Corrugated Packing Steel Reels

Corrugated Packing Steel Reels
(Galvanized)

Material : Mild Steel
Size : Flange Ø 800mm to 4,000mm
Loading Weight : Up to 15 tonne
Ideal for : Cable and wire rope packing. The finishing is hot dip galvanized to prevent rust
Corrugated Packing Steel Reels

Corrugated Packing Steel Reels
(Barrel Reinforcement)

Material : Mild Steel
Size : Flange Ø 2,000mm to 4,000mm
Loading Weight : Up to 20 tonne
Ideal for : Cable and wire rope packing. The barrel reinforcement enables higher loading capacity
Corrugated Packing Steel Reels

Corrugated Packing Steel Reels
(Ramp)

Material : Mild Steel
Size : Flange Ø 2,000mm to 4,000mm
Loading Weight : Up to 20 tonne
Ideal for : Specialty high-voltage cable packing
Corrugated Packing Steel Reels

Corrugated Packing Steel Reels
(Knock Down Bolted Type - Design A)

Material : Mild Steel
Size : Flange Ø 800mm to 3,000mm
Loading Weight : Up to 15 tonne
Ideal for : Cable and wire rope packing. The knock-down design system helps reduce transportation costs. The reels can be easily assembled using bolts
Corrugated Packing Steel Reels

Corrugated Packing Steel Reels
(Knock Down Bolted Type - Design B)

Material : Mild Steel
Size : Flange Ø 800mm to 3,000mm
Loading Weight : Up to 15 tonne
Ideal for : Cable and wire rope packing. The knock-down design system helps reduce transportation costs. The reels can be easily assembled using bolts

Standard Dimentions

Flange Diameter
(mm)
Barrel Diameter
(mm)
Inner Width
(mm)
Outer Width
(mm)
Flange Thickness
(mm)
Barrel Thickness
(mm)
Center Hole Diameter
(mm)
Inner Ring Thickness
(mm)
Outer Ring Diameter
(mm)
Do Di Wi Wo tf tb C
1000 500 600 750 2 2 80 4.5 6
1100 550 600 750 2 2 80 4.5 6
1200 600 600 750 2 2 80 4.5 6
1300 650 600 750 2 2 80 4.5 6
1400 700 750 900 2 2 80 4.5 6
1500 750 750 900 2 2 80 4.5 6
1600 800 750 900 2 2 80 4.5 6
1700 850 870 1020 2 2 80 4.5 6
1800 900 870 1020 2 2 105 4.5 6
1900 1000 870 1020 2 2 105 4.5 6
2000 1100 1020 1170 2 2 105 6 9
2100 1200 1020 1170 2 2 105 6 9
2200 1300 1020 1170 2 2 105 6 9
2300 1400 1020 1170 2 2 105 6 9
2500 1600 1020 1220 2 2 105 6 9
2600 1600 1020 1220 2 2 105 6 9
2700 1600 1200 1400 2 2 105 6 9
2800 1600 1500 1700 2 2 105 6 9
3000 1800 1500 1700 2 3 105 6 9
3200 2000 1500 1700 2 3 105 6 9

Steel reels can be built to client's specification. Supply of flanges alone is possible.

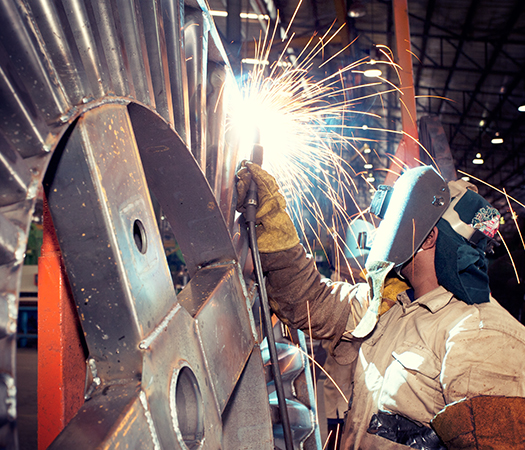

Steel Reels Factory

Our steel reels provide robust and durable packing solutions for heavy duty wire and cable applications. Our factory is equipped to produce up to 500 pieces of varied steel reels each month. This allows us to accommodate any surge in demand.

Manufacturing Highlights

Industry-standard
Design Features

Our steel reels are equipped with the following features:


  1. The round inner edged flange has a smooth belly finish to facilitate cable-end attachments. It allows for rapid and uniform winding of cables and offers greater protection during transportation.
  2. The circumference and corrugated flange of the reels are strengthened to cushion possible heavy impact caused by repetitive handling and transportation.
  3. The outer circumference of the flange is punched with evenly spaced holes to facilitate ease battening.

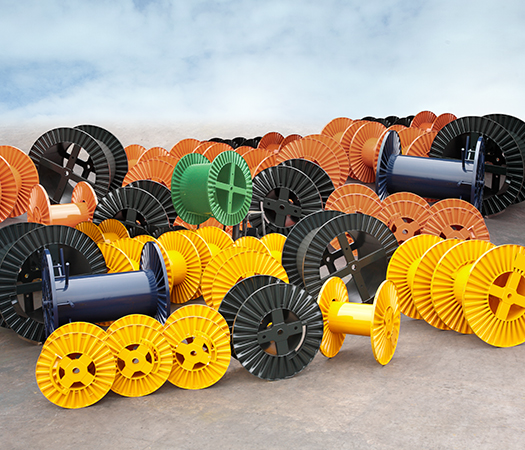

Large Production Capacity

Our factory is equipped to produce up to 500 pieces of steel reels of different sizes and specifications each month. We can easily accommodate any surge in demand for reels.

Large Production Capacity

Large Production Capacity

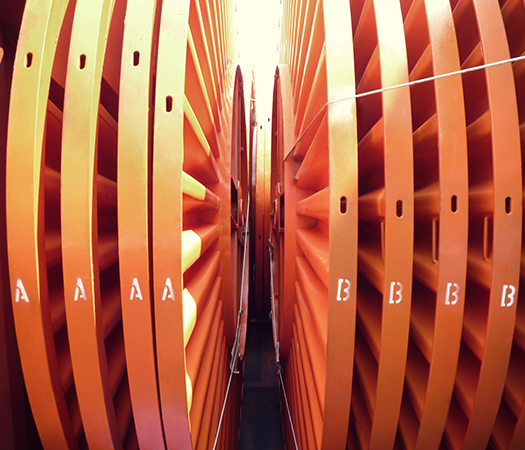

Knock-down Design System

Our knock-down design system helps increase the efficiency of assembling, dismantling and reassembling reels. Customers can save on transportation costs and the reels can be easily assembled in their plants using bolts.

Knock-down Design System

Knock-down Design System

Customisation

Our state-of-the-art manufacturing facility and technical expertise enables us to engage in new product development and custom work.

Customisation

Customisation

Aesthetics

Our cable reels can be made available in a variety of paint finishes. This may help in the differentiation of reels for different purposes.

Aesthetics

Aesthetics

Market Presence

Our steel reels are exported worldwide. We supply to major wire and cable industry giants such as Kiswire, Power Cable Malaysia, Fujikura Federal Cable, Bekaert Southern Specialty Wire, Universal Cable, Leader Cable, Prysmian Group and many more. Our key export markets are Australia, Indonesia, New Zealand, Singapore and Argentina.
